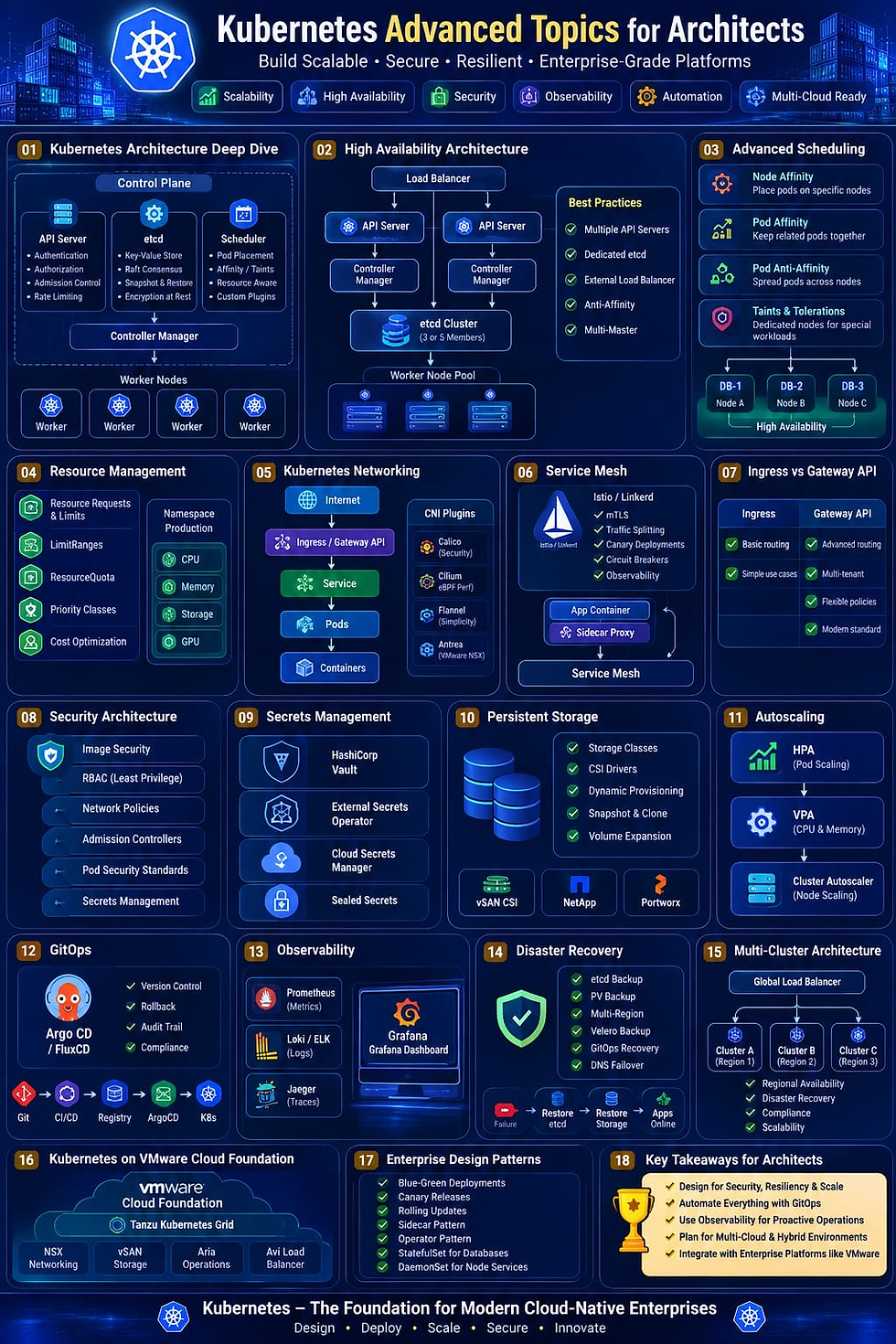

Kubernetes Advanced Topics for Solution Architects: The Complete Enterprise Guide

Kubernetes Advanced Topics for Solution Architects: The Complete Enterprise Guide

From Cluster Administration to Enterprise Architecture

Most Kubernetes tutorials stop after Pods, Deployments, and Services. Enterprise architects, however, are responsible for designing platforms that are secure, scalable, resilient, observable, and capable of supporting thousands of applications across multiple regions and cloud providers.

This guide covers Kubernetes from an architect's perspective.

1. Kubernetes Architecture Deep Dive

Control Plane Components

The Kubernetes Control Plane is the brain of the cluster.

API Server

Central communication endpoint

Authentication & Authorization

Admission Controllers

API Aggregation

Rate Limiting

etcd

Distributed Key-Value Database

Stores cluster state

Supports Raft Consensus

Snapshot & Restore

Encryption at Rest

Architect Tip:

Always deploy an odd number of etcd members (3, 5, or 7).

Never colocate production workloads on etcd nodes.

Scheduler

Responsible for placing Pods based on:

CPU

Memory

Affinity Rules

Taints & Tolerations

Resource Availability

Custom Scheduling Plugins

Scheduling Flow

Pod Created

      │

API Server

      │

Scheduler

      │

Node Selection

      │

Kubelet

Controller Manager

Runs multiple controllers:

Deployment Controller

ReplicaSet Controller

Job Controller

CronJob Controller

Node Controller

Endpoint Controller

2. High Availability Kubernetes Design

Enterprise HA Architecture

             Load Balancer

                  │

     ┌────────────┴────────────┐

     │                         │

API Server 1             API Server 2

     │                         │

 Controller Manager     Controller Manager

     │                         │

     └───────────┬─────────────┘

                 │

          etcd Cluster

      (3 or 5 Members)

                 │

      Worker Node Pool

Best Practices

Multiple API Servers

External Load Balancer

Multi-Master

Dedicated etcd

Anti-Affinity

3. Advanced Scheduler Concepts

Node Affinity

Hard Scheduling

requiredDuringSchedulingIgnoredDuringExecution

Soft Scheduling

preferredDuringSchedulingIgnoredDuringExecution

Pod Affinity

Keep related applications together.

Example

Frontend + Backend

Benefits

Lower latency

Faster communication

Pod Anti-Affinity

Spread replicas across nodes.

Example

Database Pods

DB-1 → Node A

DB-2 → Node B

DB-3 → Node C

Benefits

High Availability

Failure Isolation

4. Taints and Tolerations

Dedicated GPU Node

Node

GPU=true:NoSchedule

Only AI workloads can tolerate it.

Benefits

Resource Isolation

Better Performance

Cost Optimization

5. Resource Management

Architects should define:

Resource Requests

Resource Limits

LimitRanges

ResourceQuota

Priority Classes

Example

Namespace Production

CPU

Memory

Storage

GPU

6. Kubernetes Networking Architecture

Every Pod receives:

Unique IP

Flat Network

Direct Pod Communication

Networking Layers

Internet

     │

Ingress

     │

Service

     │

Pods

     │

Container

CNI Plugins

Popular Options

Calico

Cilium

Flannel

Antrea

Weave Net

Comparison

Plugin

Best For

Calico

Enterprise Security

Cilium

eBPF Performance

Flannel

Simplicity

Antrea

VMware NSX Integration

7. Service Mesh

Service Mesh manages east-west traffic.

Popular Platforms

Istio

Linkerd

Kuma

Consul Connect

Capabilities

mTLS

Traffic Splitting

Canary

Retries

Circuit Breakers

Observability

Architecture

App Container

      +

Sidecar Proxy

      ↓

Service Mesh

8. Ingress vs Gateway API

Traditional

Ingress

Modern

Gateway API

Advantages

Better Routing

Multi-Tenant

Flexible Policies

Easier Management

9. Security Architecture

Enterprise Security Layers

Image Security

↓

RBAC

↓

Network Policies

↓

Admission Controllers

↓

Pod Security

↓

Secrets Management

RBAC

Roles

ClusterRole

RoleBinding

ClusterRoleBinding

Least Privilege Principle

Network Policies

Default Deny

Allow only required traffic.

Example

Frontend

↓

Backend

↓

Database

Everything else blocked.

10. Secrets Management

Avoid storing secrets directly in Kubernetes.

Enterprise Solutions

HashiCorp Vault

External Secrets Operator

Cloud Secrets Manager

Sealed Secrets

11. Persistent Storage

Storage Classes

CSI Drivers

Dynamic Provisioning

Snapshot

Clone

Volume Expansion

Enterprise Storage

Dell PowerStore

NetApp Trident

Pure Storage

VMware vSAN CSI

Portworx

12. Multi-Tenant Kubernetes

Enterprise Isolation

Organization

├── Namespace A

├── Namespace B

├── Namespace C

└── Namespace D

Each Namespace

Quotas

RBAC

Policies

Secrets

Storage

13. Autoscaling

Three Levels

HPA

Horizontal Pod Autoscaler

Scales Pods

VPA

Vertical Pod Autoscaler

Adjusts CPU & Memory

Cluster Autoscaler

Adds Worker Nodes

Architecture

Traffic

↓

HPA

↓

Pods Increase

↓

Node Full

↓

Cluster Autoscaler

↓

New Node Added

14. GitOps

Declarative Infrastructure

Popular Tools

Argo CD

FluxCD

Workflow

Git

↓

CI Pipeline

↓

Container Registry

↓

ArgoCD

↓

Kubernetes

Benefits

Version Control

Rollback

Audit Trail

Compliance

15. Kubernetes Observability

Three Pillars

Metrics

Prometheus

Logs

Loki

Elastic Stack

Traces

Jaeger

Tempo

Dashboard

Grafana

16. Disaster Recovery

Architect Checklist

etcd Backup

Persistent Volume Backup

Multi-Region

Velero Backup

GitOps Recovery

Database Replication

DNS Failover

Recovery Flow

Failure

↓

Restore etcd

↓

Restore Storage

↓

GitOps Sync

↓

Applications Online

17. Kubernetes Multi-Cluster Architecture

Users

      │

Global Load Balancer

      │

───────────────

Cluster A

───────────────

Cluster B

───────────────

Cluster C

Benefits

Regional Availability

Disaster Recovery

Compliance

Scalability

18. Kubernetes on VMware Cloud Foundation (VCF)

For organizations using VMware Cloud Foundation:

Supervisor Cluster

VMware Tanzu Kubernetes Grid (TKG)

NSX Networking

vSAN CSI

VMware Aria Operations

VMware Aria Automation

VMware Avi Load Balancer

Integrated identity and lifecycle management through VCF

This architecture enables consistent management of virtual machines and Kubernetes workloads on the same software-defined infrastructure.

19. Enterprise Design Patterns

Blue-Green Deployments

Canary Releases

Rolling Updates

Sidecar Pattern

Ambassador Pattern

Adapter Pattern

Operator Pattern

StatefulSet for databases

DaemonSet for node-level services

Conclusion

Designing Kubernetes at the architect level requires balancing scalability, security, resiliency, automation, and operational simplicity. Modern enterprise platforms increasingly combine GitOps, service meshes, policy-as-code, observability, and multi-cluster management to create resilient cloud-native environments. For VMware Cloud Foundation environments, integrating Tanzu, NSX, vSAN, Aria, and Avi provides a robust foundation for running enterprise Kubernetes workloads.
